Dashboards That Actually Work: Design Principles for Actionable Insights

According to a 2019 study by Gartner, fewer than 30% of analytics dashboards in enterprise organizations were regularly used six months after deployment. The rest? Abandoned. Not because the data was wrong, but because the dashboards failed at their most basic job: helping someone make a decision.

Stephen Few, author of Information Dashboard Design, put it bluntly: "A dashboard is a visual display of the most important information needed to achieve one or more objectives, consolidated and arranged on a single screen so the information can be monitored at a glance." Most dashboards violate every part of this definition. They show too much information, require multiple screens, serve no clear objective, and demand careful study rather than a glance.

The difference between a dashboard that collects dust and one that drives daily decisions is not data availability. It is design discipline.

The Purpose Test: Decision Support, Not Data Display

Before placing a single chart on a screen, answer one question: What decision does this dashboard help someone make?

If the answer is vague---"It shows our metrics" or "It gives visibility into performance"---the dashboard will fail. Effective dashboards are designed for specific users making specific decisions with specific frequency.

Three Categories of Dashboard Purpose

1. Operational dashboards -- Monitor real-time operations and trigger immediate action

Example: Datadog's infrastructure monitoring dashboards show server health, error rates, and latency. When a metric crosses a threshold, an engineer takes action within minutes. The dashboard answers: "Is something broken right now?"

2. Analytical dashboards -- Support investigation and root cause analysis

Example: A marketing analytics dashboard showing campaign performance by channel, audience segment, and creative variant. A marketing manager uses it weekly to reallocate budget. The dashboard answers: "Where should we invest more or less?"

3. Strategic dashboards -- Track long-term KPIs and progress toward goals

Example: An executive dashboard showing quarterly revenue, customer acquisition cost, net promoter score, and employee satisfaction. The CEO reviews it monthly. The dashboard answers: "Are we on track with our strategy?"

Each category requires fundamentally different design approaches. Operational dashboards need real-time data, prominent alerts, and minimal decoration. Analytical dashboards need filtering, drill-down, and comparative views. Strategic dashboards need trend lines, goal indicators, and executive-level summary.

The cardinal sin: building one dashboard for all three purposes. The result serves none well.

Metric Selection: The Art of Ruthless Prioritization

The 3-7 Rule

Cognitive research consistently shows that humans can hold approximately 4-7 items in working memory (George Miller's famous "magical number seven, plus or minus two" from 1956). Dashboards exceeding this range overwhelm rather than inform.

Practical application: A dashboard should feature 3-7 primary metrics. Everything else belongs in drill-down views or separate dashboards.

Choosing What Matters

Step 1: Identify the user's decisions

Interview the actual intended users. Ask:

  • What decisions do you make daily, weekly, or monthly?
  • What information do you currently lack when making those decisions?
  • What would change your behavior if you saw it on a screen?

Step 2: Map decisions to metrics

For each decision, identify the minimum data required to make it confidently. A VP of Sales might need:

  • Pipeline value by stage (decides whether to push for more prospecting)
  • Win rate trend (decides whether to invest in sales training)
  • Average deal size trend (decides pricing strategy focus)

Three metrics. Three decisions. That is a working dashboard.

Step 3: Eliminate vanity metrics

Vanity metrics are numbers that look impressive but do not inform action. Total page views, total registered users, total app downloads---these numbers go up over time for any growing product. They feel good but drive no decisions.

Actionable metrics change behavior:

  • Not "total users" but "weekly active users" (indicates engagement)
  • Not "page views" but "conversion rate" (indicates effectiveness)
  • Not "total revenue" but "revenue per customer" (indicates unit economics)

Example: In 2012, Eric Ries highlighted in The Lean Startup how Grockit, an online learning platform, shifted from tracking total questions answered (vanity) to tracking learning gain per session (actionable). The vanity metric always went up; the actionable metric revealed whether the product actually worked.

Layout and Visual Hierarchy: Guiding the Eye

The F-Pattern

Eye-tracking research by the Nielsen Norman Group consistently shows that users scan web pages in an F-shaped pattern: across the top, down the left side, and then across a shorter horizontal line partway down the page.

Dashboard implications:

  • Place the single most important metric in the top-left corner
  • Arrange metrics in descending importance from left to right and top to bottom
  • Use the left column for primary KPIs; use the right for supporting context

Progressive Disclosure

The principle of progressive disclosure means showing summary information by default and detailed information on demand:

  • Level 1 (glance): The headline number---revenue is $4.2M this month
  • Level 2 (scan): Context---that is 12% above target, up 8% from last month
  • Level 3 (investigate): Drill-down---breakdown by product line, geography, customer segment

A well-designed dashboard lets a user get what they need at Level 1 in five seconds. If something looks off, they drill to Level 2 in thirty seconds. Full investigation at Level 3 takes a few minutes.

Whitespace and Grouping

Cluttered dashboards fail because they impose cognitive load---the mental effort required to process information.

  • Group related metrics into clearly labeled sections
  • Use whitespace between groups to create visual separation
  • Align elements on a consistent grid
  • Size indicates importance --- a full-width revenue chart signals its primacy over a small sidebar chart

Edward Tufte, in The Visual Display of Quantitative Information, advocates maximizing the data-ink ratio: the proportion of a graphic's ink devoted to data rather than decoration. Eliminate gridlines, borders, backgrounds, and labels that do not convey information.

Applying strong visualization principles throughout the dashboard ensures that every pixel serves comprehension rather than decoration.

Chart Selection: Matching Visualization to Message

The right chart type makes patterns obvious. The wrong chart type hides them.

The Decision Framework

What you want to show Best chart type
Comparison across categories Horizontal or vertical bar chart
Change over time Line chart
Distribution of values Histogram
Part-to-whole relationship Stacked bar chart (not pie chart)
Correlation between variables Scatter plot
Single important number Big number indicator (KPI card)
Progress toward goal Bullet chart or progress bar

Charts to Avoid on Dashboards

Pie charts: Human visual perception is poor at comparing angles and areas. A bar chart communicates the same information more accurately. If you must show part-to-whole, use a stacked horizontal bar.

3D charts: Three-dimensional effects distort perception. A bar in the back of a 3D chart appears smaller than an identical bar in front. Never use 3D for data display.

Gauge/speedometer charts: They consume enormous screen real estate to display a single number. A simple KPI card with a trend arrow communicates more in less space.

Dual-axis charts: Two y-axes on one chart invite misinterpretation. The scales are arbitrary and can be manipulated to imply correlations that do not exist. Use two separate charts instead.

Interactivity: Enabling Exploration Without Requiring It

The Default View Principle

The most important rule of dashboard interactivity: the default view, with no interaction, must answer the primary question. Interactivity enables exploration; it should not be required for basic comprehension.

A sales dashboard should show current pipeline health without any clicks. Filters allow drilling into specific regions, reps, or time periods---but the unfiltered view must be immediately useful.

Effective Interaction Patterns

  1. Date range selection -- Let users compare different periods (this quarter vs. last quarter, this year vs. last year)
  2. Dimension filters -- Slice data by geography, product, segment, or channel
  3. Drill-down -- Click a summary to reveal underlying detail (click total revenue to see revenue by product)
  4. Tooltips -- Hover for additional context without cluttering the visual
  5. Cross-filtering -- Selecting a segment in one chart highlights related data in other charts

Interaction Anti-Patterns

  • Requiring clicks to see basic data -- If the default view is empty until the user makes selections, the dashboard has failed
  • Slow interactions -- If filtering takes more than two seconds, users will stop filtering
  • Lost state -- If changing one filter resets all others, users lose their exploration context
  • Hidden controls -- If users cannot find the filter options, they will not use them

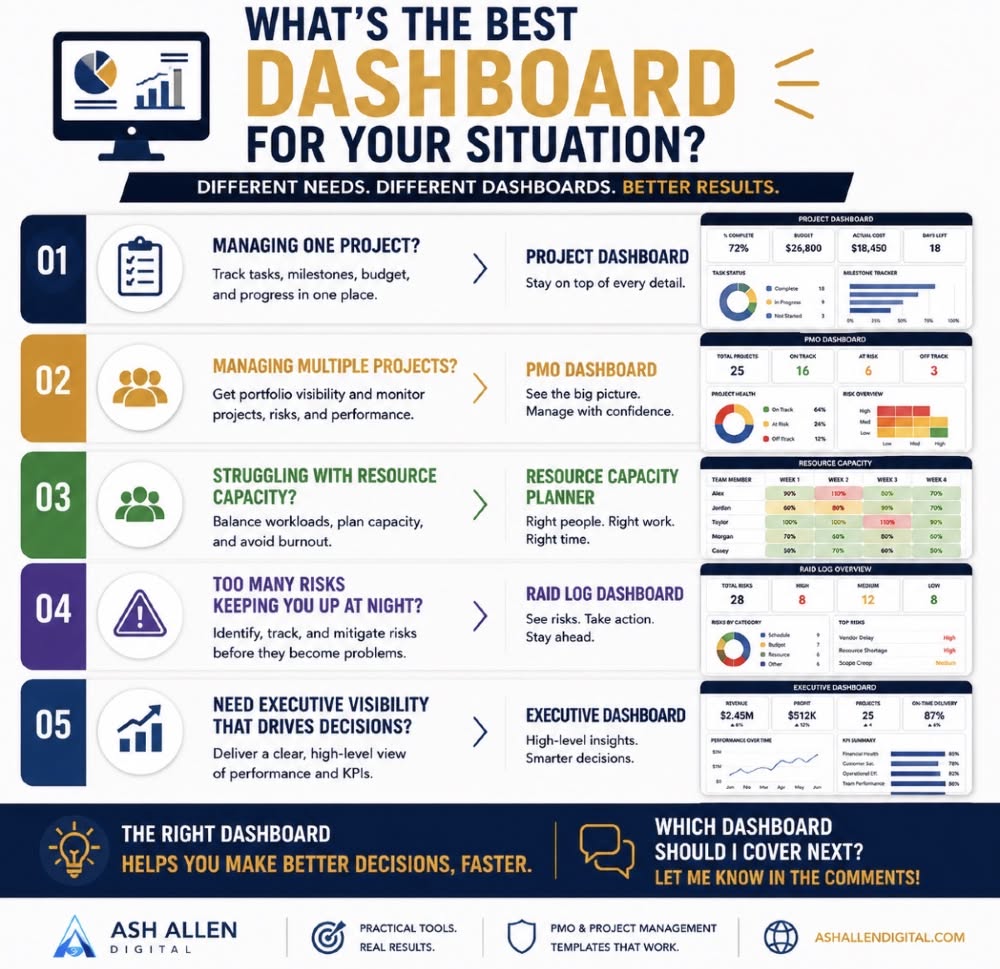

Designing for Different Users

Executive Dashboards

Characteristics: High-level KPIs, trend lines, goal progress, minimal detail. Answers: "Are we on track?"

  • 3-5 headline metrics with trend indicators
  • Comparison to targets and previous periods
  • Red/yellow/green status for quick scanning
  • Minimal interactivity; drill-down available but not expected

Example: Stripe's internal executive dashboard reportedly shows four metrics: processing volume, net revenue, active businesses, and uptime. Four numbers tell the story of the entire company's health.

Manager Dashboards

Characteristics: Team performance, comparative analysis, goal progress by team member. Answers: "Where should I focus my attention?"

  • 5-7 metrics covering team performance dimensions
  • Comparison across team members or segments
  • Ability to filter by time period and team
  • Alerts highlighting exceptions requiring attention

Operator Dashboards

Characteristics: Real-time data, granular detail, alert thresholds. Answers: "Is something wrong right now?"

  • Real-time or near-real-time data refresh
  • Clear alert states (green/yellow/red or equivalent)
  • Detailed operational metrics
  • Quick access to drill-down for troubleshooting

Analyst Dashboards

Characteristics: Flexible exploration, raw data access, statistical detail. Answers: "Why did this happen?"

  • Extensive filtering and segmentation
  • Ability to export underlying data
  • Statistical context (confidence intervals, sample sizes)
  • Multiple visualization types for different analytical needs

Measuring Dashboard Effectiveness

Building a dashboard is not the end---it is the beginning of an iterative process.

Tracking Usage

Modern BI platforms (Tableau, Looker, Power BI) provide usage analytics:

  • View frequency -- How often is the dashboard loaded?
  • Active users -- Who uses it, and is that the intended audience?
  • Session duration -- How long do users spend?
  • Filter usage -- Which filters are used? (Unused filters should be removed.)
  • Widget interaction -- Which charts are clicked, hovered, or ignored?

The Six-Month Test

Revisit every dashboard six months after launch:

  1. Is anyone using it? If usage has dropped to near zero, retire it.
  2. Are the right people using it? If the intended VP never looks at it but a junior analyst uses it daily, reconsider the audience.
  3. Has it driven any decisions? Ask users to name a specific decision the dashboard influenced. If they cannot, it is decorative.
  4. Which elements are ignored? Remove unused charts and metrics.
  5. What is missing? Users who use the dashboard regularly will have opinions about what should be added.

The Ultimate Metric

The single best measure of dashboard effectiveness: reduction in ad-hoc data requests. If building a dashboard does not reduce the number of "Can you pull this data for me?" requests, it is not answering the questions people actually have.

Common Pitfalls and How to Avoid Them

Building dashboards by committee: When every stakeholder adds "just one more metric," the dashboard becomes an unreadable wall of charts. Assign a single owner who makes final design decisions.

Designing for data, not decisions: Starting with "What data do we have?" instead of "What decisions do users make?" produces dashboards that display everything and support nothing.

Launching and forgetting: Dashboards require maintenance. Data sources change, business priorities shift, and user needs evolve. Schedule quarterly reviews.

Assuming self-service replaces curation: Self-service BI tools empower users to explore data, but most users need curated views. Not everyone should build their own dashboard any more than everyone should write their own SQL.

Ignoring mobile: Increasingly, executives check dashboards on phones. A dashboard that requires a 27-inch monitor to read is inaccessible to its most important users. Design responsive layouts or dedicated mobile views.

Understanding how cloud infrastructure and DevOps practices support real-time data delivery helps ensure dashboards display fresh, reliable data rather than stale snapshots.

From Display to Decision: The Dashboard as a Tool

The word "dashboard" comes from the board on horse-drawn carriages that protected the driver from mud "dashed" up by the horse's hooves. It was functional, not decorative. It served a clear purpose.

The best data dashboards honor that etymology. They protect decision-makers from the mud of information overload, presenting only what matters, arranged for immediate comprehension, updated reliably, and designed to trigger action.

Every chart, metric, filter, and pixel should earn its place by supporting a decision. Anything that does not support a decision is decoration---and decoration, on a dashboard, is clutter.
