CI/CD Pipelines Explained: Automating Software Delivery from Code to Production

On June 19, 2012, Facebook deployed code to production 510 times. Not 510 lines of code---510 separate deployments. At the time, this number shocked the industry. Traditional software companies shipped quarterly or annually, treating each release as a high-stakes event involving weeks of integration testing, change advisory boards, and manual deployment scripts executed by nervous engineers at 2 AM.

Facebook's approach was not reckless. It was the product of a rigorously engineered CI/CD pipeline---a system that automatically tested, validated, and deployed every code change within minutes of a developer pushing it. The difference between Facebook and its competitors was not the quality of their code. It was the speed at which they could safely change it.

Today, CI/CD is not a competitive advantage. It is table stakes. Organizations that ship software manually, in large batches, with long testing cycles, cannot respond to the market with the speed that modern competition demands. Understanding CI/CD pipelines---what they are, how they work, and how to build them effectively---is fundamental to modern software engineering.

What CI/CD Actually Means

The abbreviation combines two related but distinct practices that evolved separately before being unified into a coherent philosophy.

Continuous Integration

Continuous Integration (CI) is the practice of frequently merging code changes from multiple developers into a shared repository, with each merge triggering an automated build and test process. The word "continuous" is not hyperbole: teams practicing true CI merge to the main branch multiple times per day.

The practice emerged from bitter experience. Before CI, development teams maintained separate feature branches for weeks or months before attempting to merge them together. The result was integration hell: a catastrophic collision of incompatible changes that could take days or weeks to untangle. Kent Beck and the Extreme Programming community formalized CI in the late 1990s as an antidote, and Martin Fowler's seminal 2006 article "Continuous Integration" established the canonical definition that the industry still uses.

CI makes a crucial bet: small, frequent integrations are far less painful than large, infrequent ones. A developer who merges 50 lines of code daily encounters merge conflicts measured in minutes. A developer who merges 2,000 lines monthly encounters conflicts measured in days.

The automated test suite is the mechanism that makes frequent integration safe. Without tests, merging frequently would simply produce broken code faster. With tests, each integration triggers an automatic verification that the merged codebase still behaves correctly. A failing test blocks the merge and notifies the developer immediately---when the change is fresh in their mind and fixing it takes minutes rather than hours.

Continuous Delivery

Continuous Delivery (CD) extends CI by ensuring that every passing build is also deployable to production at any moment. The software is always in a releasable state. When the business decides to release, deployment is a business decision, not a technical ordeal.

Jez Humble and David Farley coined the term in their 2010 book Continuous Delivery, which remains the definitive treatment of the subject. Their key insight: the bottleneck in software delivery is rarely writing code. It is the accumulation of risky, manual processes between code completion and user value delivery.

Continuous Deployment

Continuous Deployment takes Continuous Delivery one step further: every change that passes all automated tests is automatically deployed to production without human approval. This is the practice Facebook and companies like Netflix, Amazon, and Etsy are famous for.

Not every organization practices Continuous Deployment. Regulated industries (banking, healthcare, aerospace) often require human sign-off for compliance reasons. Companies with external API contracts may need coordination windows. But for consumer software and web services, Continuous Deployment is increasingly the norm because the feedback loop---from code change to user behavior---compresses from weeks to hours.

The distinction matters:

  • CI: Merge frequently, test automatically
  • Continuous Delivery: Always ready to deploy; deployment is a button push
  • Continuous Deployment: Every passing build deploys automatically

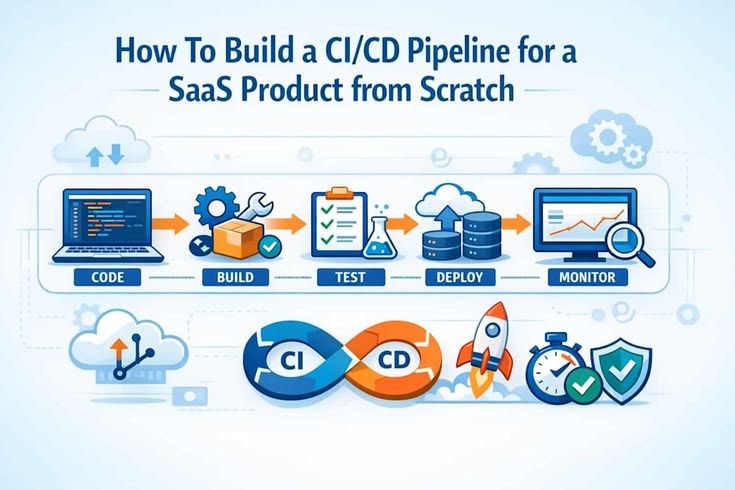

The Anatomy of a CI/CD Pipeline

A pipeline is a sequence of automated stages that code moves through from commit to production. Each stage performs specific checks or transformations, and failure at any stage stops the process and notifies the team.

Stage 1: Source Control Trigger

Everything begins with a commit pushed to a version control system---Git, in virtually all modern teams. The pipeline is triggered by specific events:

  • Push to any branch: Run lightweight checks (lint, format)
  • Pull request opened: Run full test suite; required for merge approval
  • Merge to main branch: Run full suite plus integration tests; potentially deploy to staging
  • Tag creation: Deploy to production (in Continuous Delivery models)

GitHub Actions, GitLab CI, and Jenkins all support these event-based triggers through configuration files that live alongside the code.

Example: At Shopify, every pull request triggers a CI run that must pass before a senior engineer reviews the code. The system runs approximately 300,000 test cases across their monorepo---all within 10 minutes through aggressive parallelization across cloud infrastructure.

Stage 2: Build

The build stage compiles source code into executable artifacts. For interpreted languages like Python or JavaScript, this may involve dependency installation and bundling rather than compilation. For compiled languages like Go, Java, or Rust, it produces executable binaries.

Key concerns at the build stage:

  • Reproducibility: The same code should produce the same artifact every time. Pinned dependency versions, deterministic build tools, and content-addressed caching (like Bazel's remote cache) ensure this.
  • Speed: Slow builds kill CI/CD adoption. Google's internal Blaze build system (the predecessor to open-source Bazel) can build their entire codebase by distributing work across thousands of machines. Smaller organizations use incremental builds and caching.
  • Isolation: Builds should not depend on state from previous builds. Container-based build environments (Docker, Nix) enforce this isolation.

Build artifacts are stored in an artifact registry (AWS CodeArtifact, JFrog Artifactory, GitHub Packages) so subsequent pipeline stages use identical artifacts rather than rebuilding from source.

Stage 3: Automated Testing

This is the heart of CI/CD. The test suite is the evidence that the software works as intended. A CI/CD pipeline without comprehensive tests is security theater---it automates deployment of potentially broken code faster.

Unit tests verify individual functions and classes in isolation. They run in milliseconds, catch most logic errors, and should constitute the bulk of the test suite. The testing pyramid, coined by Mike Cohn, suggests roughly 70% unit tests.

Integration tests verify that components work correctly together: the API correctly calls the database, the service correctly communicates with the message queue. These are slower and require more infrastructure but catch a different class of errors.

End-to-end (E2E) tests exercise the entire system from the user's perspective. Tools like Selenium, Playwright, and Cypress automate browser interactions. These are the slowest and most brittle tests, prone to flakiness from timing issues and environment differences. They should be limited to critical user journeys.

Performance tests verify that changes have not introduced regressions in speed or resource consumption. Tools like k6 and Gatling apply load to the system and measure response times, error rates, and resource utilization.

Security scanning is increasingly part of the test stage. Tools like Snyk, OWASP Dependency Check, and Trivy scan code and dependencies for known vulnerabilities before they reach production.

Example: Netflix's CI pipeline includes chaos engineering tests as part of the standard build. Automated tools intentionally inject failures---kill a service instance, corrupt a cache, delay a network call---and verify that the system degrades gracefully. Code that cannot survive controlled failures does not reach production.

Stage 4: Static Analysis and Code Quality

Beyond functional tests, pipelines run static analysis: examination of source code without executing it.

  • Linters enforce style consistency (ESLint for JavaScript, Pylint for Python, golangci-lint for Go)
  • Type checkers verify type correctness (TypeScript, mypy for Python)
  • Code coverage tools measure what percentage of code is exercised by tests
  • Complexity analyzers flag functions that are too complex to maintain safely
  • SAST (Static Application Security Testing) tools identify security vulnerabilities in the code itself

The key is making these gates mandatory. A pipeline that reports warnings but allows deployment provides information without enforcement. Pipelines should block deployment on critical findings and alert on warnings.

Stage 5: Artifact Packaging

After successful tests, the build artifact is packaged for deployment. For container-based deployments, this means building a Docker image and pushing it to a container registry (Docker Hub, Amazon ECR, Google Artifact Registry).

Docker images should be:

  • Minimal: Use distroless or Alpine base images to reduce attack surface
  • Immutable: Never modify images after pushing; use tags that correspond to git commit hashes
  • Multi-stage: Use multi-stage Docker builds to compile in a build image and copy only the binary into a minimal runtime image

Stage 6: Deployment to Staging

Before production, code deploys to a staging environment---a production replica running on real infrastructure but isolated from real users. Staging validates:

  • The deployment process itself works correctly
  • The artifact runs correctly in the production configuration
  • Integration with real external services (payment processors, email providers) functions as expected
  • Performance characteristics match production expectations

Staging environments should be ephemeral where possible. Creating a fresh environment for each pull request---rather than maintaining a single shared staging environment---eliminates the "contaminated staging" problem where tests from one team's deploy interfere with another's.

Example: Heroku's Review Apps feature creates a temporary, complete application environment for each pull request, with its own database, Redis instance, and SSL certificate. The environment is automatically destroyed when the PR is merged or closed. Teams can share review app URLs for stakeholder feedback before merging.

Stage 7: Production Deployment

The final stage deploys to production. How this happens depends on the deployment strategy:

  • Rolling deployment: Replace instances one at a time, maintaining availability throughout
  • Blue/green deployment: Switch traffic instantly from the current version to a new version
  • Canary deployment: Route a small percentage of traffic to the new version, validate metrics, then gradually increase

Regardless of strategy, production deployments should include:

Smoke tests: A minimal set of automated checks run immediately after deployment to verify the application is alive and basic functionality works.

Automated rollback: If smoke tests fail or error rates spike, the pipeline should automatically revert to the previous version without human intervention.

Deployment notifications: Alerts to the team via Slack, PagerDuty, or email when deployments succeed or fail.

Understanding deployment strategies in depth is critical for choosing the right approach for each application's availability requirements and risk tolerance.

Pipeline as Code

Modern CI/CD pipelines are defined as code, stored alongside the application they build and deploy. This practice, sometimes called Pipeline as Code, provides several advantages:

  • Version control: Pipeline changes are tracked, reviewable, and revertable just like application code
  • Code review: Changes to the pipeline go through the same review process as application changes
  • Reproducibility: Any developer can recreate the pipeline from the code
  • Documentation: The pipeline definition is the documentation of how software is built and deployed

Each major CI/CD platform uses its own syntax. GitHub Actions uses YAML files in .github/workflows/. GitLab CI uses .gitlab-ci.yml with stages and jobs. Jenkins uses a Jenkinsfile in Groovy DSL. CircleCI uses .circleci/config.yml.

The specific syntax matters less than the principle: the pipeline definition lives in the repository, changes with the code, and is subject to the same engineering rigor as the application itself.

Building a Fast Pipeline

Pipeline speed is a competitive advantage. Developers who wait 30 minutes for CI feedback lose context, switch tasks, and accumulate work-in-progress. Developers with 5-minute pipelines get rapid validation and maintain flow.

Parallelize Everything Possible

Most pipeline stages can run concurrently. Unit tests are embarrassingly parallel---split them across multiple runners and run simultaneously. Static analysis, dependency scanning, and type checking can all run in parallel with tests.

Modern CI platforms support job matrices: running the same job with different parameters (Node.js 18, 20, and 22; Python 3.10, 3.11, and 3.12) simultaneously rather than sequentially.

Cache Dependencies Aggressively

Downloading and installing dependencies on every run is wasteful. Cache the contents of node_modules, ~/.m2, ~/.cargo, or vendor/ directories based on the dependency manifest file's hash. If package-lock.json has not changed, restore the cache rather than running npm install.

GitHub Actions, GitLab CI, and CircleCI all have built-in caching mechanisms. Used correctly, dependency caching can reduce pipeline time by 50-80%.

Fail Fast

Run the fastest, highest-signal checks first. Lint and format checks complete in seconds. If they fail, there is no point running the 10-minute test suite. Structure the pipeline to discover failures as early as possible.

Test Parallelization

For large test suites, split tests across multiple parallel runners. Tools like Jest's --maxWorkers, pytest-xdist, and RSpec's parallel_tests gem distribute test execution across CPU cores or separate machines.

Example: Stripe runs their test suite across hundreds of parallel containers, reducing wall-clock time from hours to minutes. Their investment in parallelization infrastructure pays for itself by increasing developer productivity across thousands of engineers.

Incremental Testing

Only run tests for code that has changed. This is difficult to implement correctly but dramatically reduces CI time for large monorepos. Bazel and Nx support affected-target analysis: given a set of changed files, determine which tests could possibly be affected by those changes.

Infrastructure for CI/CD

Hosted CI/CD Services

GitHub Actions (launched 2018): Deep integration with GitHub repositories. Free tier for public repositories. Marketplace with thousands of pre-built actions. Virtual machines run on Azure infrastructure. Became the dominant CI/CD platform rapidly due to its integration with GitHub's existing developer workflows.

GitLab CI/CD: Integrated with GitLab's repository management. Strong support for self-hosted runners. Auto DevOps feature can generate pipelines automatically. Used extensively in enterprises due to GitLab's self-hosted offering.

CircleCI: One of the earliest hosted CI services. Strong Docker support, orbs (reusable pipeline components). Used by companies including Spotify and HubSpot.

Jenkins: The dominant self-hosted CI system. Massively extensible through plugins (2,000+). Requires significant operational investment to maintain. Still widely used in enterprises with existing Jenkins investments. Jenkins was the industry default from 2011 through roughly 2018 before hosted alternatives matured.

Buildkite: Hybrid model where Buildkite provides orchestration but builds run on the customer's own infrastructure. Popular for companies needing build isolation or specific hardware requirements.

Infrastructure as Code for Environments

CI/CD pipelines do not operate in isolation---they deploy to infrastructure. That infrastructure should also be defined as code using tools like Terraform, Pulumi, or AWS CDK.

Infrastructure as Code ensures that staging environments precisely mirror production, that new environments can be created on demand, and that infrastructure changes undergo the same review and testing process as application changes.

Container Orchestration

Kubernetes has become the dominant platform for running applications built and deployed by CI/CD pipelines. Tools like ArgoCD and Flux implement GitOps: the desired state of the Kubernetes cluster is declared in Git, and a controller continuously reconciles the actual state with the desired state.

In a GitOps workflow, the CI pipeline builds an artifact and updates a manifest file (changing the image tag). The GitOps controller detects the manifest change and applies it to the cluster. The cluster is never mutated directly---only through Git.

Security in CI/CD Pipelines

CI/CD pipelines are powerful attack vectors. A compromised pipeline can inject malicious code into production artifacts. The SolarWinds attack of 2020 exploited the CI/CD pipeline of SolarWinds' Orion product: attackers inserted malicious code into the build process, which was then signed and distributed as a legitimate software update to 18,000 customers including the US Treasury, State Department, and major Fortune 500 companies.

Secrets Management

Pipelines require credentials: API keys, cloud provider credentials, database passwords, signing certificates. These should never appear in pipeline configuration files or code.

Use dedicated secrets management:

  • GitHub Actions Secrets: Encrypted environment variables accessible to pipeline jobs
  • HashiCorp Vault: Enterprise secrets management with dynamic credentials
  • AWS Secrets Manager: AWS-native secrets with automatic rotation
  • OIDC (OpenID Connect): Enables pipelines to authenticate to cloud providers without long-lived credentials, eliminating a class of credential theft attacks

Least Privilege

Each pipeline stage should have only the permissions it needs. A test runner does not need production database credentials. A deployment job does not need the ability to modify CI configuration.

Use separate service accounts for each pipeline role. Audit and review permissions regularly.

Supply Chain Security

The dependencies your pipeline installs are as much a risk as your own code. The SolarWinds, Log4Shell, and event-stream (npm) incidents all exploited dependency trust chains.

Mitigations:

  • Pin dependency versions to exact hashes, not semver ranges
  • Use Software Bill of Materials (SBOM) to track all components
  • Scan dependencies for known vulnerabilities on every build
  • Use private artifact registries to cache and inspect dependencies
  • Sign build artifacts with tools like Sigstore/Cosign to enable verification

Pipeline Code Review

Changes to the pipeline itself should require the same review rigor as application code changes. A developer who can modify pipeline configuration files can potentially execute arbitrary code in the deployment environment. Treat pipeline definitions as privileged code.

Metrics: Measuring CI/CD Effectiveness

The DORA metrics (from Google's DevOps Research and Assessment team, established through research begun in 2014) are the industry-standard framework for measuring software delivery performance:

Deployment Frequency: How often code is deployed to production.

  • Elite performers: Multiple times per day
  • High performers: Once per week to once per month
  • Medium performers: Once per month to once every six months
  • Low performers: Less than once every six months

Lead Time for Changes: Time from code commit to production deployment.

  • Elite performers: Less than one hour
  • High performers: One day to one week
  • Medium performers: One month to six months
  • Low performers: More than six months

Change Failure Rate: Percentage of deployments that cause production incidents.

  • Elite performers: 0-15%
  • High performers: 16-30%

Mean Time to Restore (MTTR): Time to recover from a production failure.

  • Elite performers: Less than one hour
  • High performers: Less than one day

These metrics reveal a striking finding: high deployment frequency correlates with fewer failures, not more. Organizations that deploy more often experience lower change failure rates because their changes are smaller, easier to understand, and easier to revert. The intuition that deploying frequently is risky is exactly backwards.

Understanding reliability engineering principles provides the operational framework that makes frequent deployment safe at scale.

Common Pitfalls and How to Avoid Them

The Slow Pipeline Death Spiral

Pipelines grow slower as teams add tests and checks without removing or optimizing existing ones. A pipeline that starts at 5 minutes grows to 10, then 20, then 45 minutes over two years of accumulated additions. At some point, developers start skipping CI or batching changes to reduce CI runs---exactly the behavior CI was designed to prevent.

Prevention: Set a pipeline time budget (e.g., 10 minutes maximum) and treat violations as bugs. When adding a new check, optimize existing checks to compensate.

Flaky Tests

A flaky test is one that sometimes passes and sometimes fails for the same code, due to timing issues, environment variability, or order dependencies. Flaky tests are corrosive: developers learn to re-run the pipeline when tests fail, assuming flakiness, rather than investigating. Eventually, CI failures become ignorable noise.

Prevention: Track flakiness rates per test. Quarantine tests with flakiness rates above 1%. Fix or delete them before they infect the pipeline's signal.

Example: Google developed a system called "Flake Busters" that automatically detects, quarantines, and tracks flaky tests across their enormous test suite. Tests flagged as flaky are removed from the blocking CI gate until they are fixed, preventing them from blocking legitimate changes.

Environment Parity Failures

Code passes all CI tests, deploys to staging, and fails in production because the staging environment does not match production. Classic causes: different database versions, different environment variables, different network topology.

Prevention: Use Infrastructure as Code to ensure staging and production environments are identical in configuration, differing only in scale. Run smoke tests in production immediately after deployment with automatic rollback.

Skipping the Pipeline

Under deadline pressure, developers find ways to deploy directly to production, bypassing the pipeline. This undermines everything CI/CD is designed to provide.

Prevention: Make the pipeline the only path to production. Use branch protection rules to prevent direct pushes to main. Use cloud IAM policies to prevent direct deployment without pipeline authentication.

CI/CD at Scale: Lessons from Large Organizations

Google's Approach

Google runs one of the largest CI systems in the world. Their internal system handles a monorepo containing billions of lines of code across thousands of services. Key techniques:

  • Remote execution: Build actions execute on a distributed cluster, not local machines
  • Build caching: Action results are cached by input hash; identical inputs produce cached outputs without re-execution
  • Hermetic builds: Builds declare all dependencies explicitly; no implicit reliance on system state
  • Continuous integration at trunk: All engineers commit to a single main branch; feature isolation is done at the application level through feature flags, not the branch level

Amazon's Pipeline Philosophy

Amazon's move from twice-yearly releases to thousands of deployments per day was not a single change---it was a decade-long investment in pipeline infrastructure. Key principles from their published writings:

Ownership: Every team owns their entire pipeline, from code through production. The "you build it, you run it" culture means teams have strong incentives to make their pipelines fast, reliable, and automated.

Automated rollback: Amazon's deployment systems automatically revert deployments that cause anomalies in CloudWatch metrics. Engineers sleep better knowing that a bad deploy reverts itself before they wake up.

Blast radius reduction: Their service-oriented architecture means a bad deployment to one service cannot directly corrupt another.

Etsy's Continuous Deployment Journey

Etsy's transformation from weekly deployments to 50+ deployments per day was documented in their engineering blog starting in 2011. Their insight was that deployment anxiety came from large, infrequent changes. By deploying small changes continuously, each deployment became trivially small, understood, and reversible.

Etsy developed Deployinator, an internal tool that made deployment as simple as pressing a button, with full visibility into what was being deployed and by whom, visible to the entire team in a shared chat channel.

Getting Started: Building Your First Pipeline

For a team new to CI/CD, the highest-ROI starting point is not the most sophisticated pipeline---it is the simplest pipeline that provides real value.

Week 1 goal: Every push triggers automated tests. No manual test execution.

  1. Choose a CI platform (GitHub Actions is the easiest starting point for GitHub users)
  2. Write a basic pipeline that installs dependencies and runs the test suite
  3. Configure branch protection to require the pipeline to pass before merging

Month 1 goal: Every merge to main automatically deploys to staging.

  1. Add a deployment stage that triggers on main branch merges
  2. Set up a staging environment using the same infrastructure as production
  3. Add basic smoke tests that run after deployment

Quarter 1 goal: Production deployments are automated, with automatic rollback.

  1. Extend the deployment stage to production, with appropriate approval gates if required
  2. Implement monitoring that triggers rollback on error rate spikes
  3. Measure and begin reporting DORA metrics

The key is starting simple and iterating. A basic pipeline that runs tests is infinitely more valuable than a sophisticated pipeline that nobody has built yet.

The Cultural Dimension

CI/CD is as much a cultural transformation as a technical one. The pipeline enforces certain behaviors---frequent commits, comprehensive tests, small changes---that require cultural buy-in to sustain.

Shared responsibility for the build: When CI fails, it is everyone's problem. Teams that allow the build to remain broken for hours have implicitly accepted degraded CI as normal. High-performing teams treat a broken build as a production incident: drop everything, fix it.

Test ownership: Tests that nobody maintains become a liability. Engineers should feel responsible for the tests that cover their code, not just the code itself.

Deployment confidence: The goal of CI/CD is to make deployment mundane. Teams should be able to deploy at 3 PM on a Friday with the same confidence as 10 AM on a Tuesday. If Friday deployments are forbidden by policy, the pipeline is not doing its job.

CI/CD pipelines encode the values of software craftsmanship: automated verification, small increments, fast feedback, and relentless improvement. The organizations that have mastered them---Facebook, Amazon, Google, Netflix---deploy faster, with fewer failures, and recover faster when failures do occur. The evidence from DORA research spanning hundreds of thousands of organizations over more than a decade is unambiguous: speed and stability are not in tension. Properly implemented CI/CD delivers both simultaneously.

References

Tags

CI/CD DevOps automation software development deployment

Share this article
